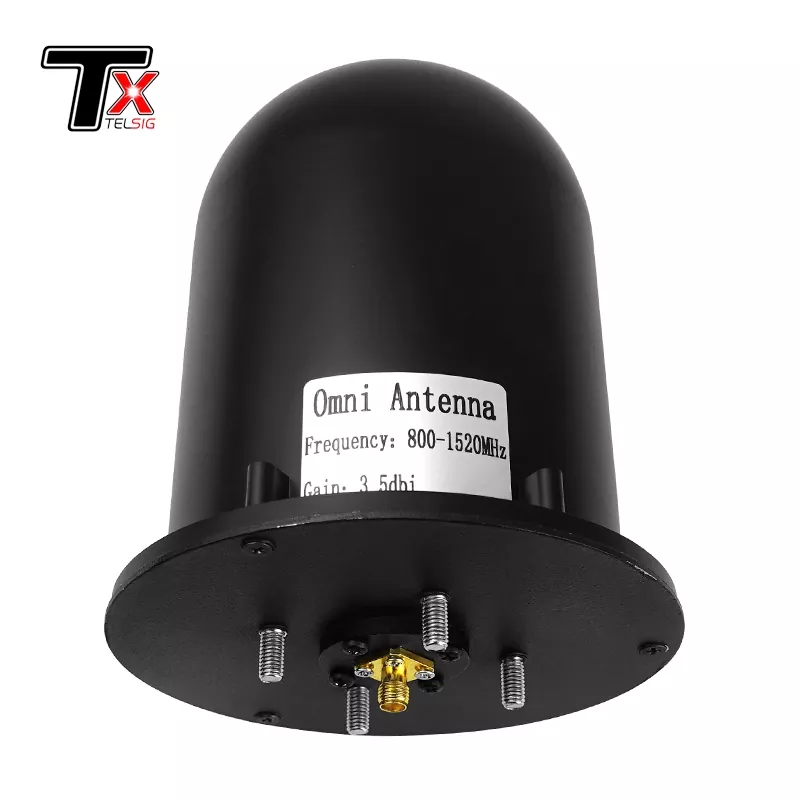

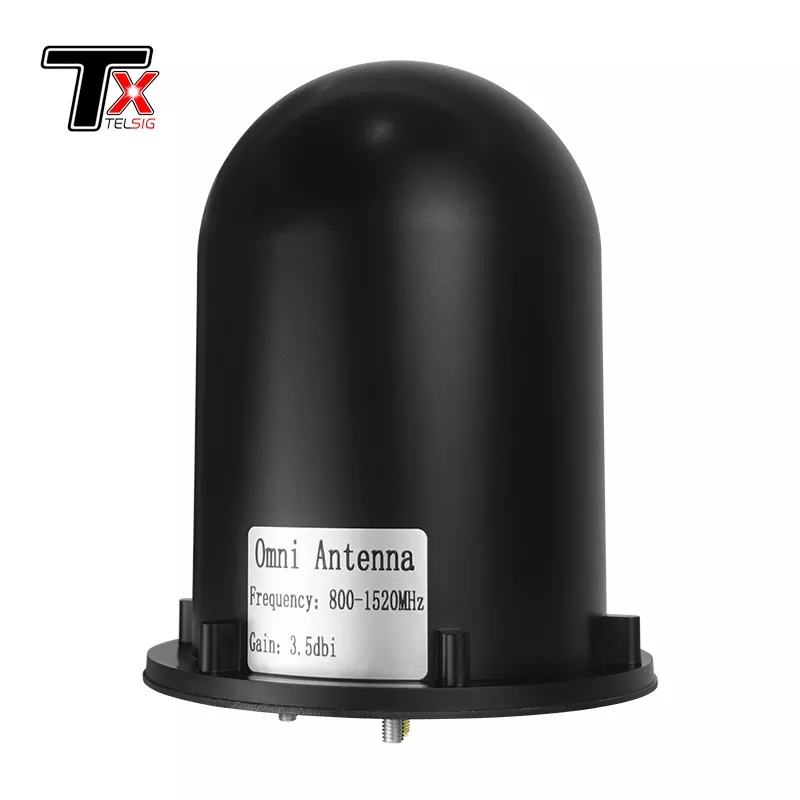

OMNI 800-1620 MHz 3.5 dBi Circularis Antennae Polarized in 800 ad 1620 MHz frequentiae ambitus operatur, eamque cum multis wireless machinis et systematibus compatibilis facit. Haec antenna 360-gradum signum omnidirectionis coverage praebet, inde stabilis receptio in quamlibet partem providet.
|
Characteres electrica |
|
|
Frequency range |
800-1620MHz |
|
Lucrum (dBi) |
3.5±0.5dBi |
|
KSVN |
≤2 |
|
Polarization |
Vertical |
|
Trabs Horizontalis Latitudo (0º) Trabs verticalis Latitudo (0º) |
360º 55±5º |
|
ovalitas (dB) |
≤±2dB |
|
Impedimentum input (Ohm) |
50Ω |
|
Maximum input imperium (W) |
50W |
|
Genus initus iungo |
SMA-K |
|
Mechanica characteres |
|
|

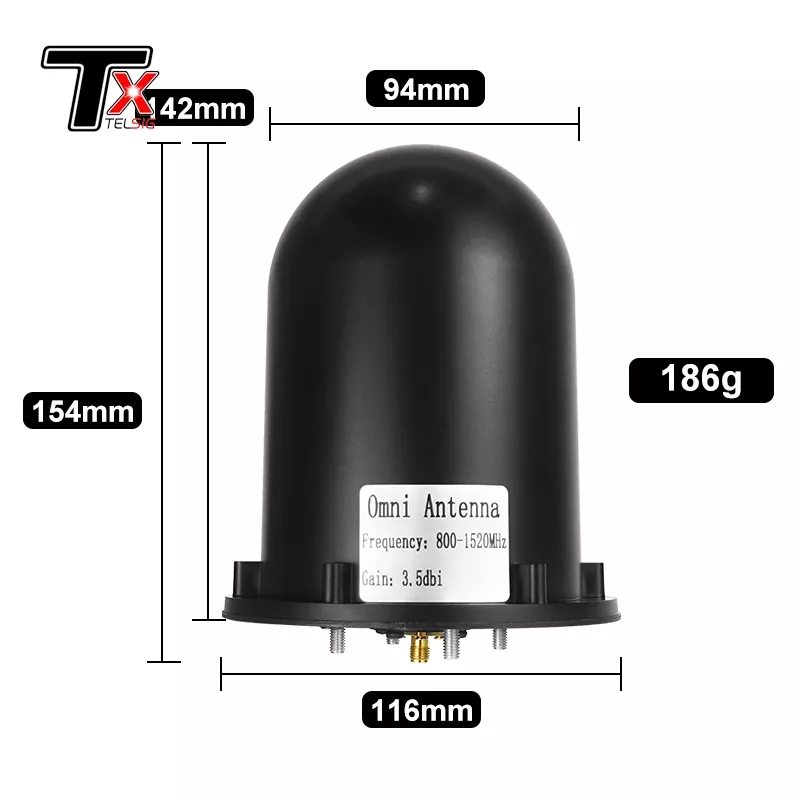

Dimensiones mm (Altitude/Latitudo / Profundum) |
ɸ115*140mm |
|
Sarcina mole (mm) |
470* 350* 220mm(20PCS) |
|
Antennae pondus (kg) |
0.35KG |
|
Rated venti celeritas (m / s) |
31m/s |
|
Uvor operating (%) |
10- 95 |
|
Fairing color |
Niger |
|
Fairing material |
ABS |
|
Temperatus operating (ºC) |
-40～55º |
|
modum institutionem |
Machina institutionem |
